Details

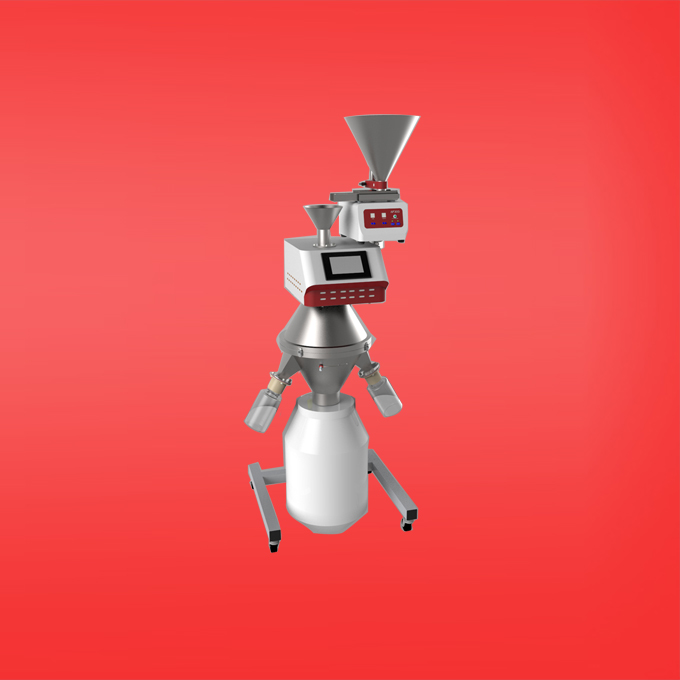

Automatic rotating divider AF400 is a instrument can adjust the ratio of the fractions.
It is suitable for powdered or granular bulk materials with particle sizes up to 10 mm.
It is used for the simple division and reduction of bulk materials of all kinds.
Provide representative dust-free samples.
The rotating divider is available with bottom cones for 1, 2 or 3 samples.
The gap width adjusts the ratio of the fractions and therefore the amount of the part sample.
Application field
Bulk materials
Grain,Soild,Ore…
Technical Parameter
|
Technical Parameter |
Automatic rotating Sample Divider AF400 |
|
Sample type |
Bulk materials |
|
Number of divisions |
1-3 |
|
Time setting |
Digital, 1 - 99 min / continuous operation |
|
Speed |
50-120rpm |
|
Bottom cones |
1,2,3 |
|
Slot width, continuously adjustable |
1 sample outle 0-159mm, 2 sample outles 0-110mm 3 sample outles 0-53mm (Customized) |
|
Max. dividing ratio |
1 sample outlet 1×1:5, 2 sample outlets 2×1:7.2, 3 sample outlets 3×1:15 (Customized) |
|
Min. dividing ratio |
1:26 Three bottom cones can be used |
|
Volume of collector |
250ml,500ml |
|
Volume of reject collector |
30L (Customized) |
|
W×H×D |
590mm×1430mm×600mm |
|
Weight net |
55KG |
|
Electrical parameters |
220V 100W |
