Details

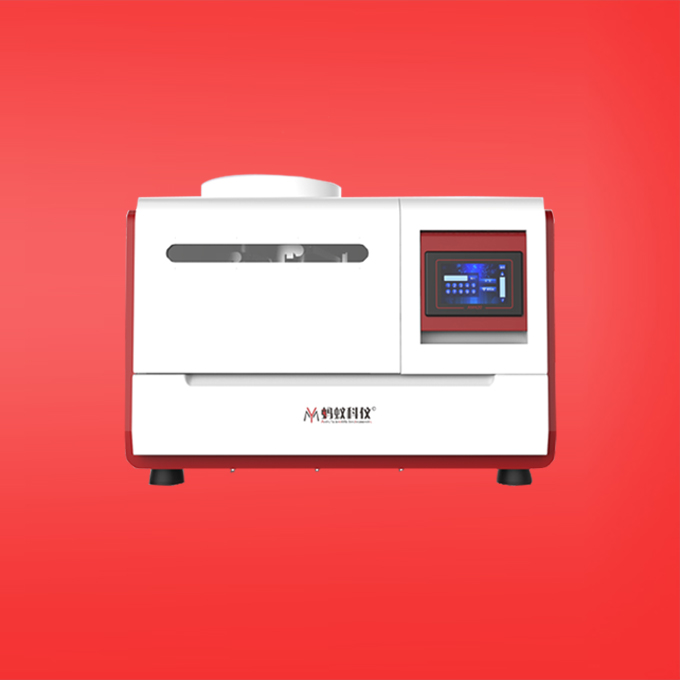

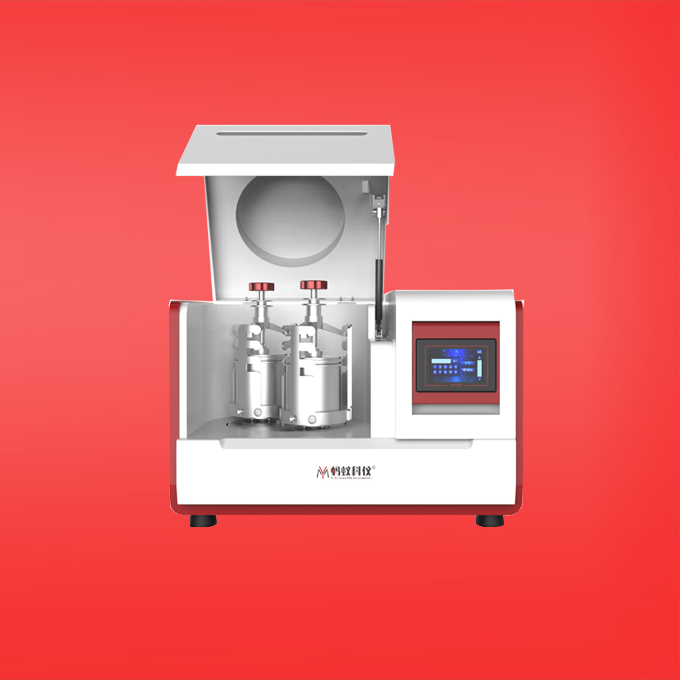

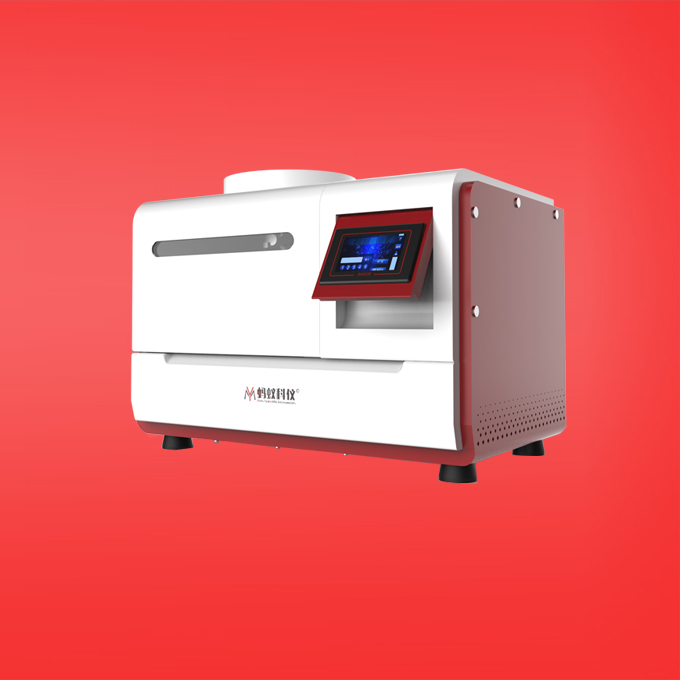

Planetary ball mill is suitable for soft、medium-hard、hard、brittle and toughness, dry and wet for grinding , wet is suitable for high fineness, even meet the requirements of preparing alloy by mechanical method。
The internal design of the planetary ball mill can meet long time running , apply on Preparation of nanomaterials0 The instrument can set the function of forward and backward, intermittent and so on. It can set two grinding periods. Each period of grinding time can set different rotational speed, and the grinding effect of the product can be optimized.
Performance advantage
• It can be run continuously for a long time.
• Extremely high speed can grind the sample to sub micron or even nanometer fineness.
• Both forward and backward can run , can set interval time and pause time , Prevent sample aggregation and better heat dissipation.
• It can set two different speed of grinding time, aiming at the special requirements of different samples.
• Grinding jars volume 50-500ml , 6 different materials , broaden application range of products
• Automatic ventilation in grinding chamber
• 10 sets of grinding parameters can be stored.
• LCD touch screen, no need to press button
• The instrument is convenient to operate, accords with the principle of artificial science, with casters, and convenient to move.
• The instrument is equipped with a safety lock device to ensure the experimental safety of the operator.
Appliacation
Agriculture, Plastic, Ceramics, Environmental research, Nanomaterials, Stone, Soil， Glass, Biological, Chemicals, Building materials, Mineral metallurgy, Hair, Sludge, Polymer, Coke
Technical information
Technical parameter
Planetary ball mill AM400
Planetary ball mill AM420
Planetary ball mill AM410
Sample type
Softe、medium-hard、hard、brittle、toughness
Feed size
＜15mm
Final fineness
About 0.1 μm（colloidal）/ About 1 μm （general grinding）
Feeding quantity
≤4×220ml
≤2×220ml
≤220ml
Setting grinding time
1s-99h59min59s
Direction setting
Direction reversa,Interval time,Pause
time,Two stage grinding time
Sun wheel speed
30rpm-450rpm
100rpm-650rpm
100rpm-650rpm
Sun wheel diameter
360mm
305mm
305mm
Speed ratio
1: -2.5
1: -2
1: -2
Grinding environment range
Dry,wet
Grinding platform
4
2
1
Grinding jar volume
50ml,80ml,125ml,250ml,500ml
Grinding jar material
Hard steel,Stainless steel,Tungsten
carbide,Agate, Corundum, Zirconia
Number of grinding jars placed
2/4/8
2/4
1/2
Stacking jars volume
50ml/80ml,placed 8
50ml/80ml,placed 4
50ml/80ml,placed 2
Grinding ball diameter
0.1mm-1mm,2mm,3mm,5mm,7mm,10mm,15mm,20mm,25mm,30mm
Parameter storage
10 groups
Combined cycle number
1-20 times
W×H×D
810mm×1220mm×815mm
656mm×517mm×396mm
656mm×517mm×396mm
Net weight
Approx. 330Kg
Approx. 100Kg
Approx, 100Kg
Electrical parameters
220V 1500W
220V 750W
